1N6626 HYPER FAST RECOVERY RECTIFIER

Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com Designer’s Data Sheet Part Number/Ordering Information1/ 1N __ __ __ │ │ └ Screening2/ ││ ││ ││ ││ __ = Not screened TX = TX Level TXV = TXV Level S = S Level ││ │ └ Package Type │ __ = Axial Leaded │ SMS = Surface Mount Square Tab │ └ Voltage/Family 6626 = 200V 6630 = 900V 6627 = 400V 6631 = 1000V 6628 = 600V 6631A =.

1N6626 Features

* Hyper Fast Recovery: 30 - 60 nsec maximum

* PIV up to 1200 Volts

* Low Reverse Leakage Current

* Hermetically Sealed

* Void Free Construction

* For High Efficiency Applications

* Typical Weight: 0.75 g (Axial Leaded); 0.45 g (SMS)

* TX, TXV, and Space Level Screeni

1N6626-SSDI.pdf

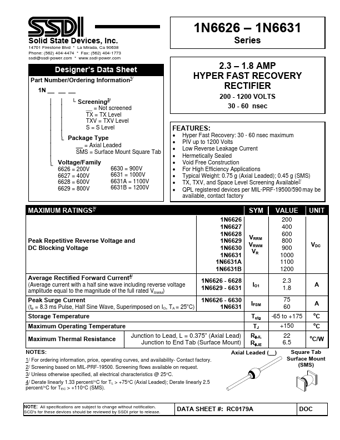

1N6626 Datasheet Preview — Preview of 1N6626 PDF

Datasheet Details

Part number:

1N6626

Manufacturer:

SSDI

File Size:

69.76 KB

Description:

Hyper fast recovery rectifier.
