SDA25-3UF - ULTRA FAST RECOVERY SINGLE PHASE BRIDGE ASSEMBLY

Product Overview

SSDI

Part number	SDA25-3UF
Manufacturer	SSDI
File Size	97.35 KB
Description	ULTRA FAST RECOVERY SINGLE PHASE BRIDGE ASSEMBLY
Datasheet	SDA25-3UF Datasheet

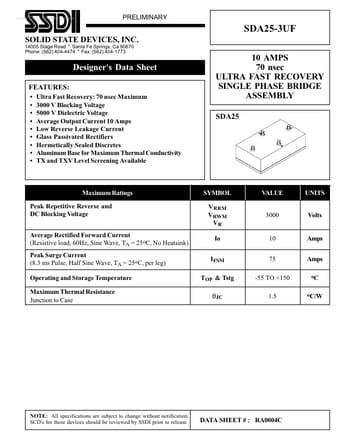

Additional preview pages of the SDA25-3UF datasheet.

Ultra Fast Recovery: 70 nsec Maximum 3000 V Blocking Voltage 5000 V Dielectric Voltage Average Output Current 10 Amps Low Reverse Leakage Current Glass Passivated Rectifiers Hermetically Sealed Discretes Aluminum Base for Maximum Thermal Conductivity TX and TXV Level Screening Available 1.30 Maximum Ratings Peak Repetitive Reverse and DC Blocking Voltage Average Rectified Forward Current (Resistive load, 60Hz, Sine Wave, TA = 25oC, No Heatsink) Peak Surge Current (8.3 ms Pul.
