SDA2516 Datasheet - Siemens

SDA2516 - Nonvolatile Memory 1-Kbit E2PROM

I2C Bus Interface The I2C Bus is a bidirectional 2-line bus for the transfer of data between various integrated circuits.

It consists of a serial data line SDA and a serial clock line SCL.

The data line requires an external pull-up resistor to VCC (open drain output stage).

The possible operational

SDA2516 Features

* q Word-organized reprogrammable nonvolatile memory q q q q q q q q q in n-channel floating-gate technology (E2PROM) 128 × 8-bit organization Supply voltage 5 V Serial 2-line bus for data input and output (I2C Bus) Reprogramming mode, 10 ms erase/write cycle Reprogramming by means of on-chip control

SDA2516_SiemensSemiconductorGroup.pdf

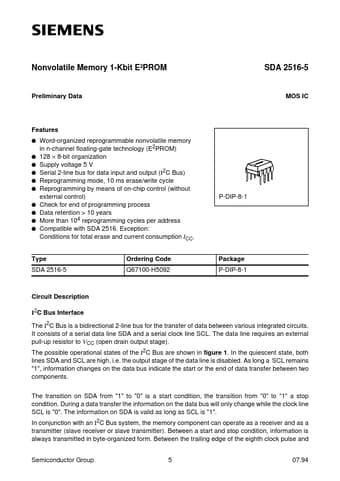

Preview of SDA2516 PDF
SDA2516 Datasheet Preview Page 2 SDA2516 Datasheet Preview Page 3

Datasheet Details

Part number:

SDA2516

Manufacturer:

Siemens

File Size:

272.94 KB

Description:

Nonvolatile memory 1-kbit e2prom.
