SDA2516-5 - Nonvolatile Memory 1-Kbit E2PROM

Product Overview

Siemens

Part number	SDA2516-5
Manufacturer	Siemens
File Size	272.94 KB
Description	Nonvolatile Memory 1-Kbit E2PROM
Datasheet	SDA2516-5 Datasheet

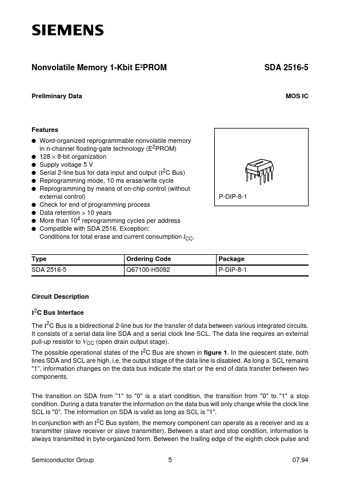

Additional preview pages of the SDA2516-5 datasheet.

I2C Bus Interface The I2C Bus is a bidirectional 2-line bus for the transfer of data between various integrated circuits.

q Word-organized reprogrammable nonvolatile memory q q q q q q q q q in n-channel floating-gate technology (E2PROM) 128 × 8-bit organization Supply voltage 5 V Serial 2-line bus for data input and output (I2C Bus) Reprogramming mode, 10 ms erase/write cycle Reprogramming by means of on-chip control (without external control) Check for end of programming process Data retention > 10 years More than 104 reprogramming cycles per address Compatible with SDA 2516. Exception: Conditions for total eras.
