SDA2506-5 - Nonvolatile Memory 1-Kbit E2PROM

Product Overview

Siemens

Datasheet Details

Part number	SDA2506-5
Manufacturer	Siemens
File Size	147.26 KB
Description	Nonvolatile Memory 1-Kbit E2PROM
Datasheet	SDA2506-5 Datasheet

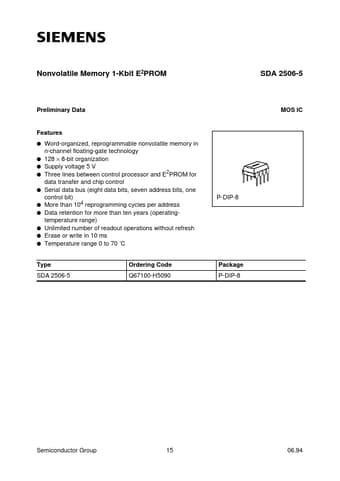

Additional preview pages of the SDA2506-5 datasheet.

Product details

Description

Data Transfer and Chip Control Three lines, each with several functions, are necessary for overall data transfer between the control processor and the E2PROM: a) Data line D bidirectional serial data transfer serial entry of address and control bit direct control, D = 1 for erase, D = 0 for write b) Clock line Φ shift clock for data, address and control bits start readout with transfer of data from memory into shift register or start of data cha

Features

q Word-organized, reprogrammable nonvolatile memory in n-channel floating-gate technology q 128 × 8-bit organization q Supply voltage 5 V q Three lines between control processor and E2PROM for q q q q q q data transfer and chip control Serial data bus (eight data bits, seven address bits, one control bit) More than 104 reprogramming cycles per address Data retention for more than ten years (operatingtemperature range) Unlimited number of readout operations without refresh Erase or write in 10.
