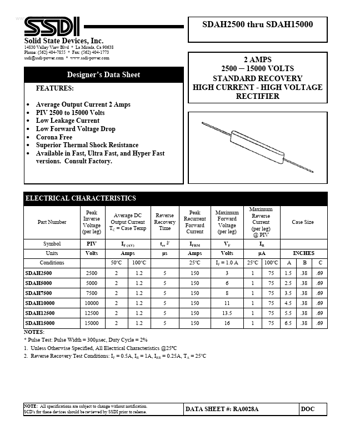

SDAH12500, SDAH10000 - (SDAH2500 - SDAH15000) STANDARD RECOVERY HIGH CURRENT - HIGH VOLTAGE RECTIFIER

SSDI

Datasheet Details

Part number	SDAH12500, SDAH10000
Manufacturer	SSDI
File Size	142.91 KB
Description	(SDAH2500 - SDAH15000) STANDARD RECOVERY HIGH CURRENT - HIGH VOLTAGE RECTIFIER
Datasheet	SDAH10000_SSDI.pdf
Note	This datasheet PDF includes multiple part numbers: SDAH12500, SDAH10000. Please refer to the document for exact specifications by model.

Average Output Current 2 Amps PIV 2500 to 15000 Volts Low Leakage Current Low Forward Voltage Drop Corona Free Superior Thermal Shock Resistance Available in Fast, Ultra Fast, and Hyper Fast versions. Consult Factory. 2 AMPS 2500 ─ 15000 VOLTS.
