SZN5117 - (SZN5063 - SZN5117) ZENER DIODES

Product Overview

SSDI

Part number	SZN5117
Manufacturer	SSDI
File Size	222.46 KB
Description	(SZN5063 - SZN5117) ZENER DIODES
Datasheet	SZN5117 Datasheet
Note	This datasheet PDF includes multiple part numbers: SZN5117, SZN5063. Please refer to the document for exact specifications by model.

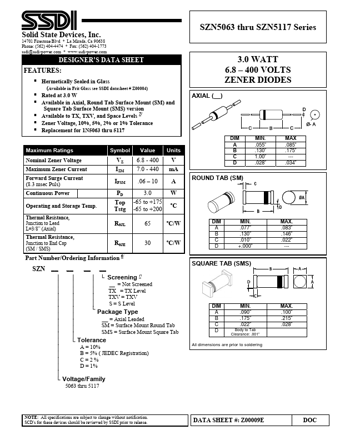

Additional preview pages of the SZN5117 datasheet.

Hermetically Sealed in Glass (Available in Frit Glass see SSDI datasheet # Z00004) 3.0 WATT 6.8.
400 VOLTS ZENER DIODES AXIAL (__).
Rated at 3.0 W.
Available in Axial, Round Tab Surface Mount (SM) and Square Tab Surface Mount (SMS) version.
Available to TX, TXV, and Space Levels 7/.
Zener Voltage, 10%, 5%, 2% or 1% Tolerance.
Replacement for 1N5063 thru 5117 Maximum Ratings Nominal Zener Voltage Maximum Zener Current Forward Surge Current (8.3 msec Puls.
