SZN6315

The SZN6315 is (SZN6309 - SZN6355) ZENER DIODES designed by SSDI.

Product Overview

SSDI

Part number	SZN6315, SZN6309
Manufacturer	SSDI
File Size	236.69 KB
Description	(SZN6309 - SZN6355) ZENER DIODES
Datasheet	SZN6309_SSDI.pdf
Note	This datasheet PDF includes multiple part numbers: SZN6315, SZN6309. Please refer to the document for exact specifications by model.

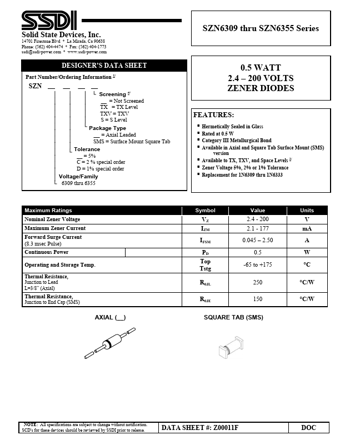

Additional preview pages of the SZN6315 datasheet.

Hermetically Sealed in Glass.
Rated at 0.5 W.
Category III Metallurgical Bond.
Available in Axial and Square Tab Surface Mount (SMS).
version Available to TX, TXV, and Space Levels 2/ Zener Voltage 5%, 2% or 1% Tolerance Replacement for 1N6309 thru 1N6333 Maximum Ratings Nominal Zener Voltage Maximum Zener Current Forward Surge Current (8.3 msec Pulse) Continuous Power Operating and Storage Temp. Thermal Resistance, Junction to Lead L=3/8” (Axial) http://w.
