SZN6488 - (SZN6485 - SZN6491) ZENER DIODES

Product Overview

SSDI

📥 Download Datasheet

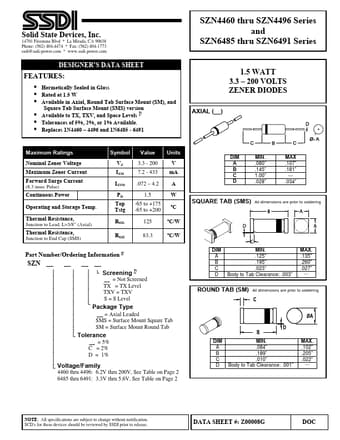

SZN6488 (SZN6485 - SZN6491) ZENER DIODES by SSDI - Datasheet Preview — Datasheet preview – SZN6488

Datasheet Details

Part number	SZN6488
Manufacturer	SSDI
File Size	179.17 KB
Description	(SZN6485 - SZN6491) ZENER DIODES
Datasheet	SZN6488 Datasheet
Note	This datasheet PDF includes multiple part numbers: SZN6488, SZN4460. Please refer to the document for exact specifications by model.
Additional preview pages of the SZN6488 datasheet.

Product details

Features

Hermetically Sealed in Glass.
Rated at 1.5 W.
Available in Axial, Round Tab Surface Mount (SM), and.
Available to TX, TXV, and Space Levels 7/.
Tolerances of 5%, 2%, or 1% Available.
Replaces 1N4460.
4496 and 1N6485 - 6491 Maximum Ratings Nominal Zener Voltage Maximum Zener Current Forward Surge Current (8.3 msec Pulse) Square Tab Surface Mount (SMS) version Symbol VZ IZM IZSM PD Top Tstg RθJL RθJE Value 3.3 - 200 7.2 - 433 .072.
4.2 1.5 -65.
