80NF70

N-CHANNEL Power MOSFET

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics STP80NF70 MOSFET N-CH 68V 98A TO220AB DigiKey 529 5000 units
$0.84

80NF70 Datasheet (421.75 KB)

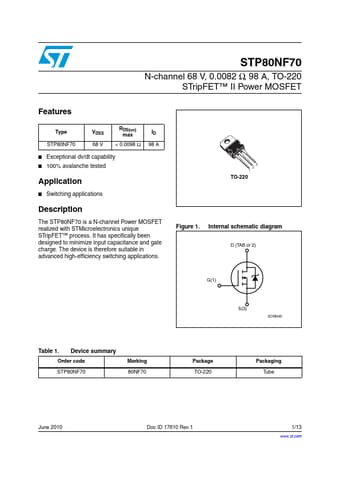

Preview of 80NF70 PDF Datasheet

Datasheet Details

Part number:

80NF70

Manufacturer:

STMicroelectronics ↗

File Size:

421.75 KB

Description:

N-channel power mosfet.

80NF70 Features

* Type STP80NF70 VDSS 68 V RDS(on) max < 0.0098 Ω ID 98 A

* Exceptional dv/dt capability

* 100% avalanche tested Application

* Switching applications Description The STP80NF70 is a N-channel Power MOSFET realized with STMicroelectronics unique STripFET™ process. It has specifically

80NF70 General Description

The STP80NF70 is a N-channel Power MOSFET realized with STMicroelectronics unique STripFET™ process. It has specifically been designed to minimize input capacitance and gate charge. The device is therefore suitable in advanced high-efficiency switching applications. 3 2 1 TO-220 Figure 1. Internal .
