80NF10

N-CHANNEL POWER MOSFET

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics STP80NF10FP MOSFET N-CH 100V 38A TO220FP DigiKey 1012 2000 units
$1.38

80NF10 Datasheet (332.15 KB)

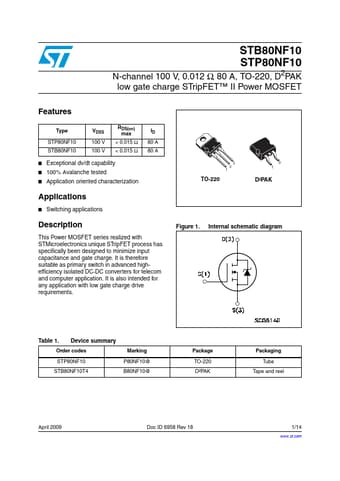

Preview of 80NF10 PDF Datasheet

Datasheet Details

Part number:

80NF10

Manufacturer:

STMicroelectronics ↗

File Size:

332.15 KB

Description:

N-channel power mosfet.

80NF10 Features

* Type STP80NF10 STB80NF10 VDSS 100 V 100 V RDS(on) max < 0.015 Ω < 0.015 Ω

* Exceptional dv/dt capability

* 100% Avalanche tested

* Application oriented characterization ID 80 A 80 A Applications

* Switching applications Description This Power MOSFET series realized with STMicr

80NF10 General Description

This Power MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced highefficiency isolated DC-DC converters for telecom and computer application. It is .
