80N240K6

N-channel Power MOSFET

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor STMicroelectronics STD80N240K6 N-CHANNEL 800 V, 197 MOHM TYP., DigiKey 1360 500 units
$2.86

80N240K6 Datasheet (534.53 KB)

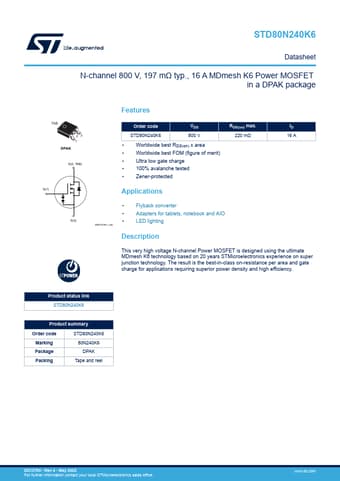

Preview of 80N240K6 PDF

Datasheet Details

Part number:

80N240K6

Manufacturer:

STMicroelectronics ↗

File Size:

534.53 KB

Description:

N-channel power mosfet.

80N240K6 Features

* Order code VDS RDS(on) max. ID STD80N240K6 800 V 220 mΩ 16 A

* Worldwide best RDS(on) x area

* Worldwide best FOM (figure of merit)

* Ultra low gate charge

* 100% avalanche tested

* Zener-protected Applications AM01476v1_tab

* Flyback

80N240K6 General Description

This very high voltage N-channel Power MOSFET is designed using the ultimate MDmesh K6 technology based on 20 years STMicroelectronics experience on super junction technology. The result is the best-in-class on-resistance per area and gate charge for applications requiring superior power density an.
