80NF03L-04 Datasheet - STMicroelectronics

80NF03L-04, STP80NF03L-04

STP80NF03L-04 STB80NF03L-04 STB80NF03L-04-1 N-CHANNEL 30V - 0.0035 Ω - 80A D2PAK/I2PAK/TO-220 STripFET™ II POWER MOSFET TYPE VDSS RDS(on) STB80NF0.
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" stripbased process.

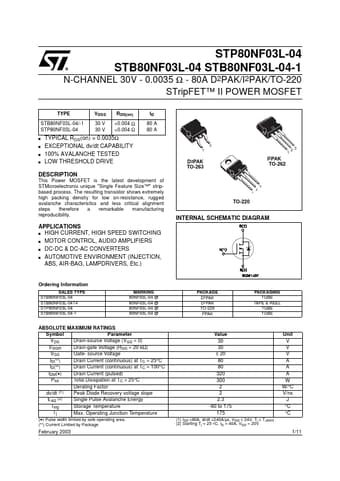

datasheet Preview Page 1 from Datasheet4u.com

80NF03L-04-STMicroelectronics.pdf

Preview of 80NF03L-04 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

80NF03L-04

Manufacturer:

STMicroelectronics ↗

File Size:

357.39 KB

Description:

STP80NF03L-04

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC & DC-AC CONVERTERS s AUTOMOTIVE ENVIRONMENT (INJECTION, ABS, AIR-BAG, LAMPDRIVERS, Etc. ) 3 1 D2PAK TO-263 123 I2PAK TO-262 3 2 1 TO-220 INTERNAL SCHEMATIC DIAGRAM Ordering Information SALES TYPE STB80NF03L-04 STB80NF0
