HDMI05-CL02F3 Datasheet, Protection, ST Microelectronics

HDMI05-CL02F3 Features

  • Protection
  • Low line capacitance: 12 pF max.
  • High efficiency in ESD protection
  • Lead-free package
  • Very thin package
  • High reliability offered by mono

PDF File Details

Part number:

HDMI05-CL02F3

Manufacturer:

STMicroelectronics ↗

File Size:

935.26kb

Download:

📄 Datasheet

Description:

Control line esd protection. The HDMI05-CL02F3 chip is a low capacitance ESD protection for HDMI control pins. It also integrates pull-up resistor for I²C bus and

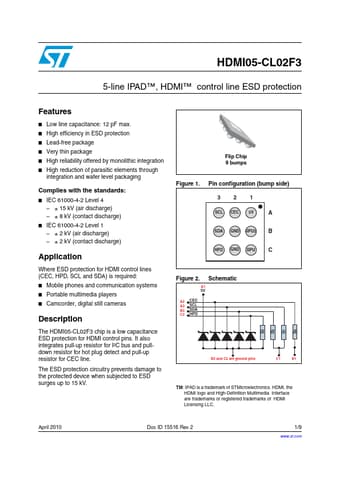

Datasheet Preview: HDMI05-CL02F3 📥 Download PDF (935.26kb)
