HDMIULC6-2M6, HDMIULC6-2P6, Ultra Low Capacitance 2 line ESD protection

DVIULC6-2x6 HDMIULC6-2x and SATAULC6-2x6 Ultra Low Capacitance 2 line ESD protection Data Brief Main applications * DVI and HDMI ports up to 1.6.
The DVIULC6-2x6, HDMIULC6-2x6 and SATAULC6-2x6 are a monolithic Application Specific Discrete dedicated to ESD protection of high speed interfaces.

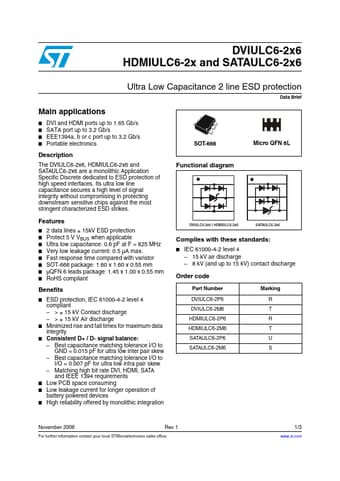

datasheet Preview Page 1 from Datasheet4u.com

HDMIULC6-2P6-STMicroelectronics.pdf

HDMIULC6-2M6 Datasheet Preview — This datasheet PDF includes multiple part numbers: HDMIULC6-2M6, HDMIULC6-2P6. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HDMIULC6-2M6, HDMIULC6-2P6

Manufacturer:

STMicroelectronics ↗

File Size:

49.28 KB

Description:

Ultra Low Capacitance 2 line ESD protection

Note:

This datasheet PDF includes multiple part numbers: HDMIULC6-2M6, HDMIULC6-2P6.
Please refer to the document for exact specifications by model.

Features

* 2 data lines ± 15kV ESD protection
* Protect 5 V VBUS when applicable
* Ultra low capacitance: 0.6 pF at F = 825 MHz
* Very low leakage current: 0.5 µA max.
* Fast response time compared with varistor
* SOT-666 package: 1.60 x 1.60 x 0.55 mm
* µQFN 6 leads package: 1.45

Applications

* DVI and HDMI ports up to 1.65 Gb/s
* SATA port up to 3.2 Gb/s
* EEE1394a, b or c port up to 3.2 Gb/s
