HDMIULC6-2P6 Datasheet, Protection, STMicroelectronics

HDMIULC6-2P6 Features

  • Protection
  • 2 data lines ± 15kV ESD protection
  • Protect 5 V VBUS when applicable
  • Ultra low capacitance: 0.6 pF at F = 825 MHz
  • Very low leakage current: 0.5 µA

PDF File Details

Part number:

HDMIULC6-2P6

Manufacturer:

STMicroelectronics ↗

File Size:

49.28kb

Download:

📄 Datasheet

Description:

Ultra low capacitance 2 line esd protection. The DVIULC6-2x6, HDMIULC6-2x6 and SATAULC6-2x6 are a monolithic Application Specific Discrete dedicated to ESD protection of high spe

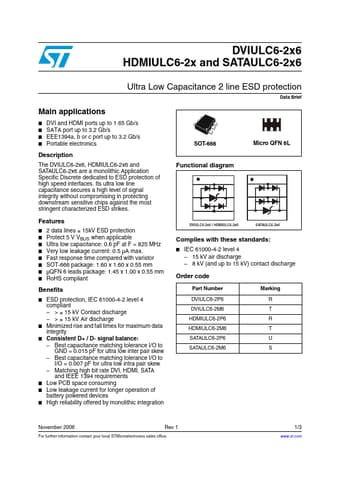

Datasheet Preview: HDMIULC6-2P6 📥 Download PDF (49.28kb)
Page 2 of HDMIULC6-2P6 Page 3 of HDMIULC6-2P6

HDMIULC6-2P6 Application

  • Applications
  • DVI and HDMI ports up to 1.65 Gb/s
  • SATA port up to 3.2 Gb/s
  • EEE1394a, b or c port up to 3.2 Gb/s
