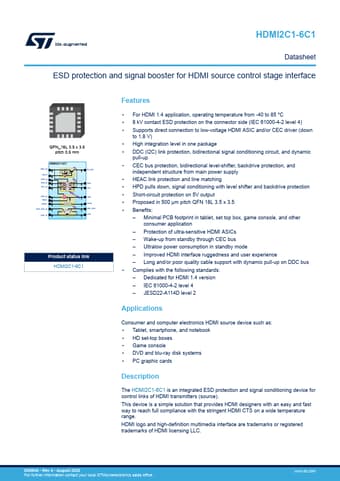

HDMI2C1-6C1 Datasheet, Booster, STMicroelectronics

HDMI2C1-6C1 Features

• Booster
• For HDMI 1.4 application, operating temperature from -40 to 85 °C
• 8 kV contact ESD protection on the connector side (IEC 61000-4-2 level 4)
• Supports direct

PDF File Details

Part number:

HDMI2C1-6C1

Manufacturer:

STMicroelectronics ↗

File Size:

1.13MB

Download:

📄 Datasheet

Description:

Esd protection and signal booster. The HDMI2C1-6C1 is an integrated ESD protection and signal conditioning device for control links of HDMI transmitters (source). This

HDMI2C1-6C1 Application

• Applications Consumer and computer electronics HDMI source device such as:
• Tablet, smartphone, and notebook
• HD set-top boxes

TAGS

HDMI2C1-6C1

STMicroelectronics
