LCP02-150B1

PROTECTION IC FOR RINGING SLICS

LCP02-150B1 Features

* s s s s s s Protection IC recommended for ringing SLICs. Wide firing voltage range: from -110V to +95V. Low gate triggering current: IG = 5mA max. Peak pulse current: IPP = 30A (10/1000µs) . Holding current: IH = 150mA min. UL497B approved (file E136224) SO-8 WIDE MAIN APPLICATIONS s s s s

LCP02-150B1 General Description

The LCP02-150B1 has been developed to protect SLICs operating on both negative and positive battery supplies, as well as on high voltage SLICs. It provides crowbar mode protection for both TIP and RING lines. The surge suppression is assumed for each wire by two thyristor structures, one dedicated t.

LCP02-150B1 Datasheet (72.26 KB)

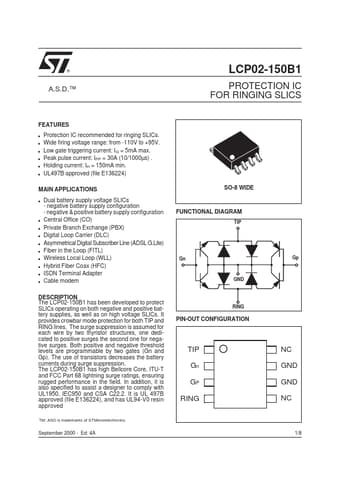

Preview of LCP02-150B1 PDF

Datasheet Details

Part number:

LCP02-150B1

Manufacturer:

STMicroelectronics ↗

File Size:

72.26 KB

Description:

Protection ic for ringing slics.
