Datasheet4U Logo Datasheet4U.com

LCP02-150M Datasheet - ST Microelectronics

PROGRAMMABLE TRANSIENT VOLTAGE SUPPRESSOR FOR RINGING SLICS

LCP02-150M Features

* Protection IC recommended for ringing SLICs. Wide firing voltage range: from -110V to +95V. Low gate triggering current Peak pulse current: IPP = 100A (10/1000µs) . Holding current: IH = 150mA min. High power dissipation capability UL497B approved (file E136224) s s s s s s s MAIN APPLICATIONS Dual

LCP02-150M General Description

The LCP02-150M has been developed to protect SLICs operating on both negative and positive supplies, as well as on high voltage SLICs. It provides crowbar mode protection for both TIP and RING lines. Surge suppression is assumed for each wire by two thyristor structures, one dedicated to positive su.

LCP02-150M Datasheet (64.74 KB)

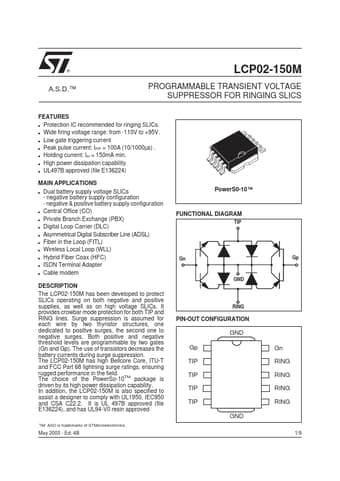

Preview of LCP02-150M PDF

Datasheet Details

Part number:

LCP02-150M

Manufacturer:

STMicroelectronics ↗

File Size:

64.74 KB

Description:

Programmable transient voltage suppressor for ringing slics.
