LCP1511D

PROGRAMMABLE TRANSIENT VOLTAGE SUPPRESSOR FOR SLIC PROTECTION

LCP1511D Features

* DUAL PROGRAMMABLE TRANSIENT SUPPRESSOR. WIDE NEGATIVE FIRING VOLTAGE RANGE : VMGL = -80V max. LOW DYNAMIC SWITCHING VOLTAGES : VFP and V DGL. LOW GATE TRIGGERING CURRENT : IGT = 5mA max. PEAK PULSE CURRENT : IPP = 30A for 10/1000µs surge. HOLDING CURRENT : IH = 150mA. DESCRIPTION This device has be

LCP1511D General Description

This device has been especially designed to protect subscriber line card interfaces (SLIC) against transient overvoltages. Positive overloads are clipped with 2 diodes. Negative surges are suppressed by 2 thyristors, their breakdown voltage being referenced to -VBAT through the gate. This component .

LCP1511D Datasheet (64.48 KB)

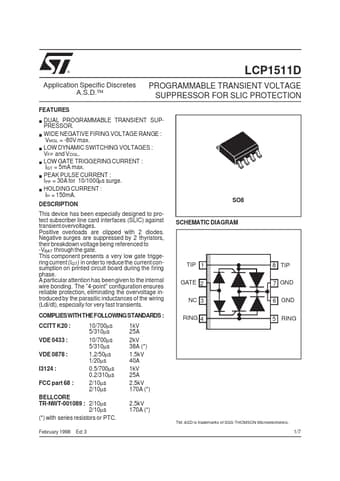

Preview of LCP1511D PDF

Datasheet Details

Part number:

LCP1511D

Manufacturer:

STMicroelectronics ↗

File Size:

64.48 KB

Description:

Programmable transient voltage suppressor for slic protection.
