LCP1521S

(LCP1521S/DEE) Programmable transient voltage suppressor

LCP1521S Features

* Dual programmable transient suppressor Wide negative firing voltage range: VMGL = -150 V max. Low dynamic switching voltages: VFP and VDGL Low gate triggering current: IGT = 5 mA max Peak pulse current: IPP = 30 A (10/1000 µs) Holding current: IH = 150 mA m

LCP1521S General Description

These devices have been especially designed to protect new high voltage, as well as classical SLICs, against transient overvoltages. www.DataSheet4U.com Positive overvoltages are clamped by 2 diodes. Negative surges are suppressed by 2 thyristors, their breakdown voltage being referenced to -VBAT t.

LCP1521S Datasheet (194.51 KB)

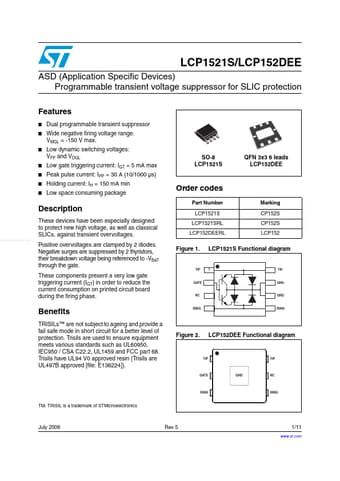

Preview of LCP1521S PDF

Datasheet Details

Part number:

LCP1521S

Manufacturer:

STMicroelectronics ↗

File Size:

194.51 KB

Description:

(lcp1521s/dee) programmable transient voltage suppressor.
