LCP100E, 1W Miniature SMT DC/DC Con vert ers

LCP100E Series Low Cost, 1W Miniature SMT DC/DC Converters Electrical Speciﬁcations Key .

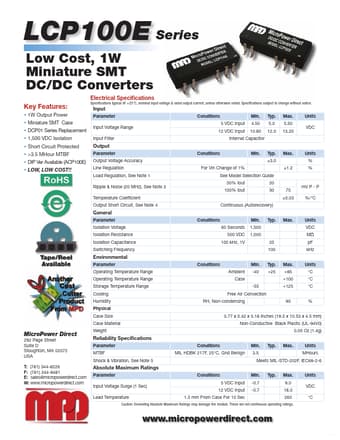

datasheet Preview Page 1 from Datasheet4u.com

LCP100E-micropowerdirect.pdf

LCP100E Datasheet Preview — Preview of LCP100E PDF

Datasheet Details

Part number:

LCP100E

Manufacturer:

micropowerdirect

File Size:

307.84 KB

Description:

1W Miniature SMT DC/DC Con vert ers

Features

* 1W Output Power
* Miniature SMT Case
* DCP01 Series Replacement
* 1,500 VDC Isolation
* Short Circuit Protected
* >3.5 MHour MTBF
* DIP Ver Available (ACP100E)
* LOW, LOW COST!! Speciﬁcations typical @ +25°C, nominal input voltage &

Applications

* requiring very 15 VDC 1.0 µF low output noise levels, a simple LC ﬁlter should be effective. 4. Given for frequency range of 5 to 500 Hz and PSD of 0.0248 g2/Hz. Tested on X, Y & Z axis for 60 minutes. 5. It is recommended that a fuse be used on the input of a power supply for protection. See the Mo
