LCP111E, LCP100E - 1W Miniature SMT DC/DC Con vert ers

LCP111E Description

LCP100E Series Low Cost, 1W Miniature SMT DC/DC Converters Electrical Specifications Key .

LCP111E Features

* 1W Output Power
* Miniature SMT Case
* DCP01 Series Replacement
* 1,500 VDC Isolation
* Short Circuit Protected
* >3.5 MHour MTBF
* DIP Ver Available (ACP100E)
* LOW, LOW COST!! Specifications typical @ +25°C, nominal input voltage &

LCP111E Applications

* requiring very 15 VDC 1.0 µF low output noise levels, a simple LC filter should be effective. 4. Given for frequency range of 5 to 500 Hz and PSD of 0.0248 g2/Hz. Tested on X, Y & Z axis for 60 minutes. 5. It is recommended that a fuse be used on the input of a power supply for protection. See the Mo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LCP111E, LCP100E. Please refer to the document for exact specifications by model.

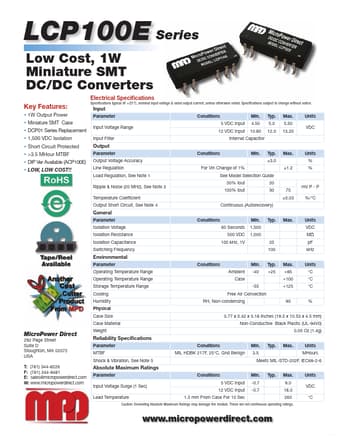

datasheet Preview Page 2

Datasheet Details

Part number
LCP111E, LCP100E
Manufacturer
micropowerdirect
File Size
307.84 KB
Datasheet
LCP100E-micropowerdirect.pdf
Description
1W Miniature SMT DC/DC Con vert ers
Note
This datasheet PDF includes multiple part numbers: LCP111E, LCP100E.
Please refer to the document for exact specifications by model.
