LCP1531

Programmable transient voltage suppressor

LCP1531 Features

* Dual programmable transient suppressor

* Wide negative firing voltage range: VGn = -175 V max.

* Low dynamic switching voltages: VFP and VDGL

* Low gate triggering current: IGT = 5 mA max

* Peak pulse current: IPP = 37.5 A (5/310 µs)

* Holding curren

LCP1531 General Description

These devices are ideally suited to meet the protection requirement of VoIP SLICs located in next generation residential gateways. They can be used for protecting any ringing.

LCP1531 Datasheet (103.97 KB)

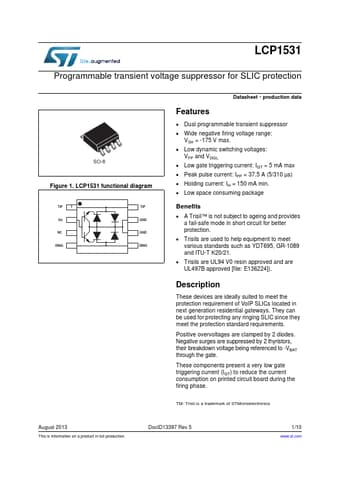

Preview of LCP1531 PDF

Datasheet Details

Part number:

LCP1531

Manufacturer:

STMicroelectronics ↗

File Size:

103.97 KB

Description:

Programmable transient voltage suppressor.
LCP1531 Programmable transient voltage suppressor for SLIC protection SO-8 Figure 1. LCP1531 functional diagram TIP 1 Gn NC RING TIP GND GND RING.
