LD1117 Datasheet - ST Microelectronics

Adjustable and fixed low drop positive voltage regulator

LD1117 Features

* Low dropout voltage (1 V typ.)

* 2.85 V device performances are suitable for SCSI-2 active termination

* Output current up to 800 mA

* Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V

* Adjustable version availability (VREF = 1.25 V)

* Inte

LD1117 General Description

The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (VREF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223, DPA.

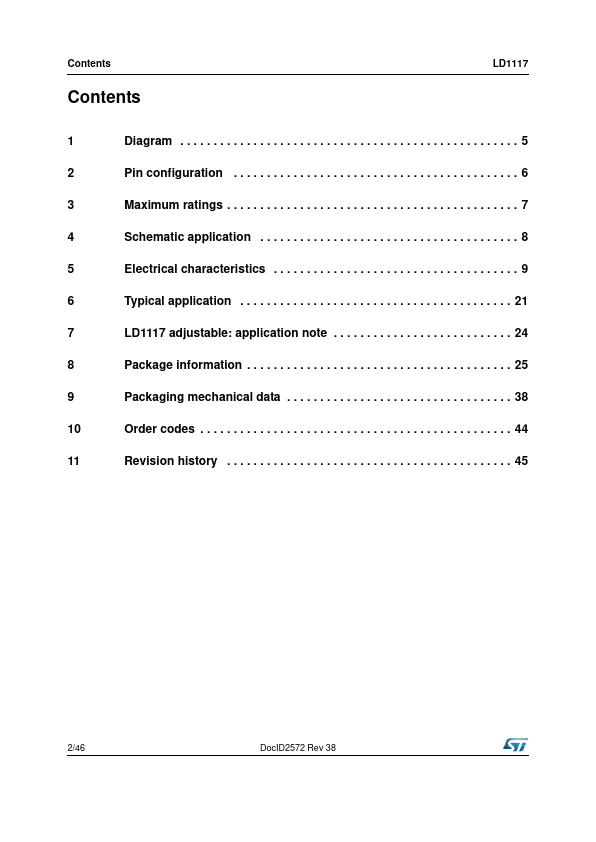

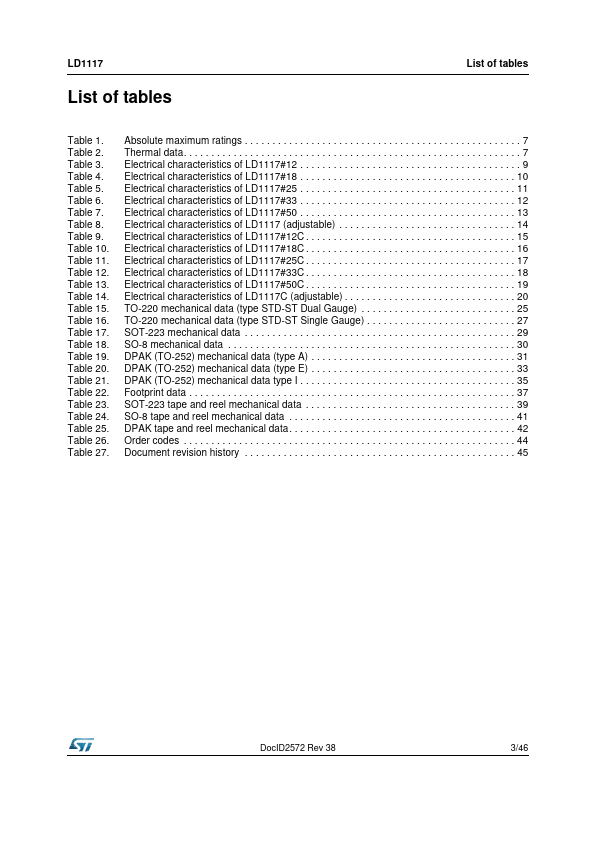

LD1117 Datasheet (1.48 MB)

Preview of LD1117 PDF

Datasheet Details

Part number:

LD1117

Manufacturer:

STMicroelectronics ↗

File Size:

1.48 MB

Description:

Adjustable and fixed low drop positive voltage regulator.
