LD1580

7 A VERY LOW DROP POSITIVE VOLTAGE REGULATOR ADJUSTABLE AND FIXED

LD1580 Features

* a built-in output current limit function and a thermal shutdown protection with hysteresis which prevents from excessive power dissipation in case of insufficient ABSOLUTE MAXIMUM RATINGS Symbol VPOWER IOUT PD Tstg Top DC VPOWER voltage Output Current Power Dissipation Storage Temperature Range Oper

LD1580 General Description

The LD1580 is a very low dropout positive linear voltage regulator particularly suitable in applications requiring output currents up to 7 A. The LD1580 typical dropout voltage is 400mV at 7A while it decreases at lighter loads. This very low dropout is achieved thanks to a second input voltage pin,.

LD1580 Datasheet (473.33 KB)

Preview of LD1580 PDF

Datasheet Details

Part number:

LD1580

Manufacturer:

STMicroelectronics ↗

File Size:

473.33 KB

Description:

7 a very low drop positive voltage regulator adjustable and fixed.

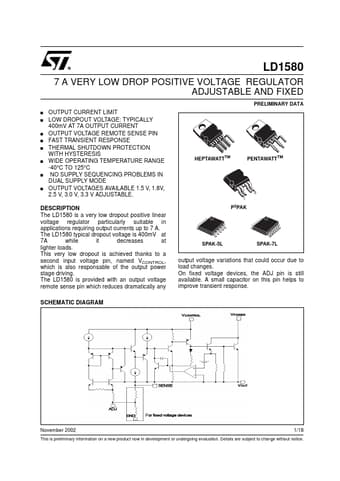

LD1580 7 A VERY LOW DROP POSITIVE VOLTAGE REGULATOR ADJUSTABLE AND FIXED PRELIMINARY DATA s s s s s s s s OUTPUT CURRENT LIMIT LOW DROPOUT VOLTAG.
