LD1596

2A 150kHz 40V BUCK DC/DC CONVERTER

Unisonic Technologies

LD1596 Features

* Wide 4.5V~40V Input Voltage Range

* Output Adjustable from 1.235V~37V

* Minimum Drop Out 1.5V

* Fixed 150kHz Switching Frequency

* 2A Constant Output Current Capability

* Internal Optimize Power Transistor

* Excellent line and load regulation

* TTL shutdown capabili

LD1596 General Description

The UTC LD1596 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2A load with high efficiency. The PWM control circuit is able to adjust the duty ratio linearly from 0~100%. An enable function, an over current protection function is built inside. An internal comp.

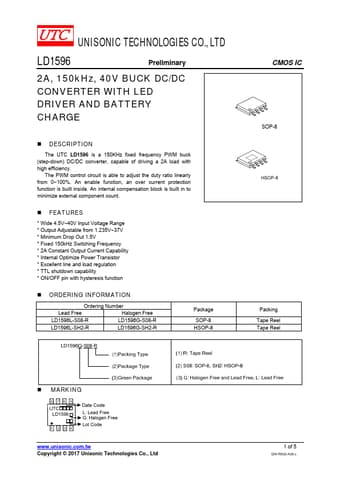

LD1596 Datasheet (176.38 KB)

LD1596 Datasheet Preview — Preview of LD1596 PDF

Datasheet Details

Part number:

LD1596

Manufacturer:

Unisonic Technologies

File Size:

176.38 KB

Description:

2a 150khz 40v buck dc/dc converter.
