LD1003S

High Performance N-Channel POWERJFET

LD1003S Features

* Trench Power JFET with low threshold voltage Vth. Device fully “ON” with Vgs = 0.7V Optimum for “Low Side” Buck Converters Optimized for Secondary Rectification in isolated DC-DC Low Rg and low Cds for high speed switching www.DataSheet4U.com No “Body Diode”; extremely low Cds Added Fa

LD1003S General Description

The Power JFET transistor from Lovoltech is a device that presents a Low Rdson allowing for improved efficiencies in DCDC switching applications. The device is designed with a low threshold such that drivers can operate at 5V, which reduces the driver power dissipation and increases the overall effi.

LD1003S Datasheet (688.30 KB)

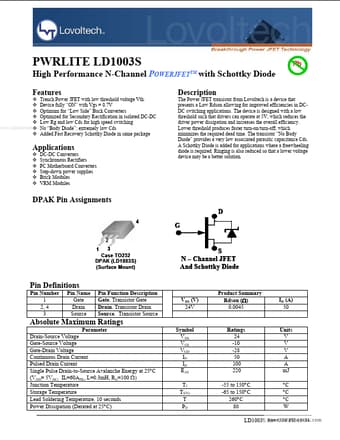

LD1003S Datasheet Preview — Preview of LD1003S PDF

Datasheet Details

Part number:

LD1003S

Manufacturer:

Lovoltech

File Size:

688.30 KB

Description:

High performance n-channel powerjfet.
