LD1086 - 1.5A adjustable and fixed low drop positive voltage regulator

Product Overview

ST Microelectronics

📥 Download Datasheet

LD1086 1.5A adjustable and fixed low drop positive voltage regulator by ST Microelectronics - Datasheet Preview — Datasheet preview – LD1086

Datasheet Details

Part number	LD1086
Manufacturer	STMicroelectronics
File Size	1.01 MB
Description	1.5A adjustable and fixed low drop positive voltage regulator
Datasheet	LD1086 Datasheet
Additional preview pages of the LD1086 datasheet.

Product details

Description

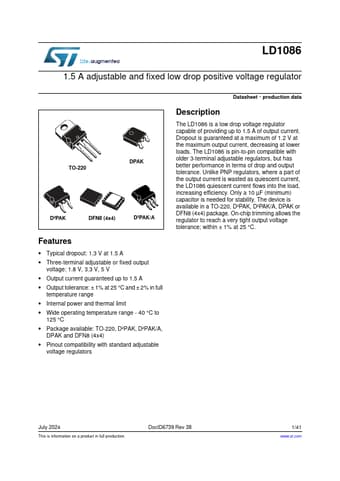

The LD1086 is a low drop voltage regulator capable of providing up to 1.5 A of output current.

Features

Typical dropout: 1.3 V at 1.5 A.
Three-terminal adjustable or fixed output voltage: 1.8 V, 3.3 V, 5 V.
Output current guaranteed up to 1.5 A.
Output tolerance: ± 1% at 25 °C and ± 2% in full temperature range.
Internal power and thermal limit.
Wide operating temperature range - 40 °C to 125 °C.
Package available: TO-220, D²PAK, D²PAK/A, DPAK and DFN8 (4x4).
Pinout compatibility with standard adjustable voltage regulators D.
