LD101WX1-SL01 - TFT LCD Module

Product Overview

LD101WX1-SL01 TFT LCD Module by LG - Datasheet Preview — Datasheet preview – LD101WX1-SL01

Datasheet Details

Part number	LD101WX1-SL01
Manufacturer	LG
File Size	548.28 KB
Description	TFT LCD Module
Datasheet	LD101WX1-SL01 Datasheet

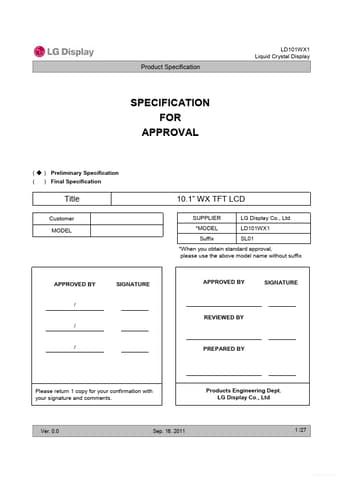

Additional preview pages of the LD101WX1-SL01 datasheet.

Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTION LVDS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX.

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Compliance 10.1 inches diagonal LCD : 228.96(H) × 148.5(V) x 2.5(D,Max), 4.8(D,Max. W/PCB) mm 0.1695mm × 0.1695 mm 1280 horiz. By 800 vert. Pixels RGB strip arrangement 6-bit + FPC, 16.7M colors 400 cd/m2 (Typ. ) / 320cd/m2 (min. ) , Average @ 5 point Total 3.13 W(typ. ) (Logic :0.6 W (typ. @ Mosaic), B/L : 2.53W ( VLED 3V ) 145g (Max. ) (T.
