LD1010DA

High Performance N-Channel POWERJFET

LD1010DA Features

* ™ Superior gate charge x Rdson product (FOM) ™ Trench Power JFET with low threshold voltage Vth. ™ Device fully “ON” with Vgs = 0.7V ™ Optimum for “Low Side” Buck Converters ™ Excellent for high frequency dc/dc converters www.DataSheet4U.com ™ Optimized for Secondary Rectification in isolated DC-DC

LD1010DA General Description

The Power JFET transistor from Lovoltech is a device that presents a Low Rdson allowing for improved efficiencies in DCDC switching applications. The device is designed with a low threshold such that drivers can operate at 5V, which reduces the driver power dissipation and increases the overall effi.

LD1010DA Datasheet (638.33 KB)

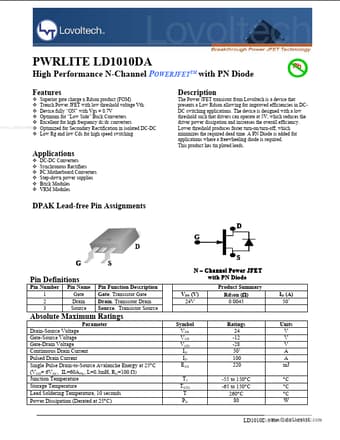

Preview of LD1010DA PDF

Datasheet Details

Part number:

LD1010DA

Manufacturer:

Lovoltech

File Size:

638.33 KB

Description:

High performance n-channel powerjfet.
