LD1084 - 5A low-drop positive voltage regulator adjustable

Product Overview

ST Microelectronics

📥 Download Datasheet

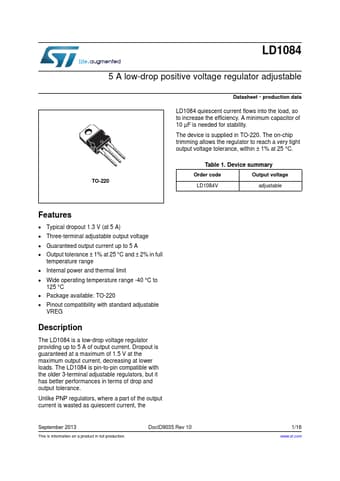

LD1084 5A low-drop positive voltage regulator adjustable by ST Microelectronics - Datasheet Preview — Datasheet preview – LD1084

Datasheet Details

Part number	LD1084
Manufacturer	STMicroelectronics
File Size	387.47 KB
Description	5A low-drop positive voltage regulator adjustable
Datasheet	LD1084 Datasheet
Additional preview pages of the LD1084 datasheet.

Product details

Description

The LD1084 is a low-drop voltage regulator providing up to 5 A of output current.

Features

Typical dropout 1.3 V (at 5 A).
Three-terminal adjustable output voltage.
Guaranteed output current up to 5 A.
Output tolerance ± 1% at 25 °C and ± 2% in full temperature range.
Internal power and thermal limit.
Wide operating temperature range -40 °C to 125 °C.
Package available: TO-220.
Pinout compatibility with standard adjustable VREG.
