LD1010D High Performance N-Channel POWERJFET

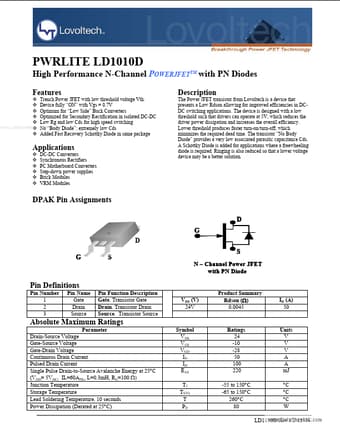

📥 Download Datasheet  Datasheet Preview Page 1

Description

PWRLITE LD1010D High Performance N-Channel POWERJFETTM with PN Diodes .
The Power JFET transistor from Lovoltech is a device that presents a Low Rdson allowing for improved efficiencies in DCDC switching applications.

📥 Download Datasheet

Preview of LD1010D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LD1010D
Manufacturer
Lovoltech
File Size
657.77 KB
Datasheet
LD1010D_Lovoltech.pdf
Description
High Performance N-Channel POWERJFET

Features

* ™ Trench Power JFET with low threshold voltage Vth. ™ Device fully “ON” with Vgs = 0.7V ™ Optimum for “Low Side” Buck Converters ™ Optimized for Secondary Rectification in isolated DC-DC ™ Low Rg and low Cds for high speed switching www. DataSheet4U. com ™ No “Body Diode”; extremely low Cds ™ Added Fa

Applications

* The device is designed with a low threshold such that drivers can operate at 5V, which reduces the driver power dissipation and increases the overall efficiency. Lower threshold produces faster turn-on/turn-off, which minimizes the required dead time. The transistor “No Body Diode” provides a very
