LD1585CXX

5A low dropout fast response positive voltage regulator adjustable

LD1585CXX Features

* Typical dropout 1.2 V Fast transient response up to 5 A

* Three terminal adjustable www.DataSheet4U.com

* Guaranteed output current

* Output tolerance ± 1 % at 25 °C and ± 2 % in full temperature range Internal power and thermal limit Wide operating

LD1585CXX General Description

The LD1585C is a low drop voltage regulator able to provide up to 5 A of output current. Dropout is guaranteed at a maximum of 1.4 V at the maximum output current, decreasing at lower loads. The device has been improved to be utilized in low voltage applications where transient response and minimum .

LD1585CXX Datasheet (743.74 KB)

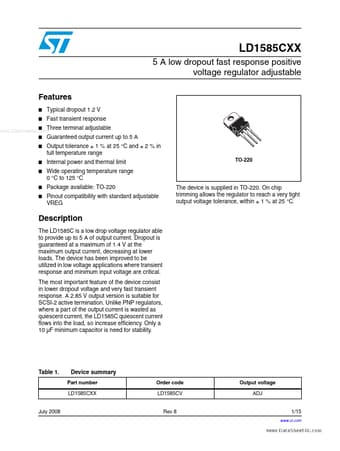

Preview of LD1585CXX PDF

Datasheet Details

Part number:

LD1585CXX

Manufacturer:

STMicroelectronics ↗

File Size:

743.74 KB

Description:

5a low dropout fast response positive voltage regulator adjustable.
