LD1550-C500 Infrared Laser Diode

LD1550-C500 Description

LD1550-C500 TECHNICAL DATA Infrared Laser Diode .

LD1550-C500 Features

* Lasing Mode Structure: multi mode
* Peak Wavelength : typ. 1560 nm
* Optical Ouput Power: 500 mW, CW
* Package: 9.0 mm, flat window
* MPD available on request Electrical Connection Pin Configuration PIN Function 1 LD Cathode 2 LD Anode 3 (PD on request) Bot

📥 Download Datasheet

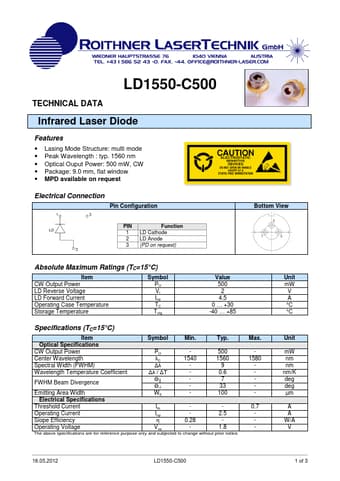

Preview of LD1550-C500 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LD1550-C500
Manufacturer
Roithner
File Size
363.02 KB
Datasheet
LD1550-C500-Roithner.pdf
Description
Infrared Laser Diode
