M29W004BB 4 Mbit 512Kb x8 / Boot Block Low Voltage Single Supply Flash Memory

The M29W004B is a 4 Mbit (512Kb x8) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single low voltage (2.7 to 3.6V) supply. On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM. The M29W004B .

M29W004BT M29W004BB 4 Mbit (512Kb x8, Boot Block) Low Voltage Single Supply Flash Memory s SINGLE 2.7 to 3.6V SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS ACCESS TIME: 55ns PROGRAMMING TIME 10µs by Byte typical 11 MEMORY BLOCKS 1 Boot Block (Top or Bottom Location) 2 Parameter and 8 Main Blocks s s s s PROGRAM/ERASE CONTROLLER Embedded Byte Program algorithm Embedded Multi-Block/Chip Erase algorithm Status Register Polling.

M29W004BB Features

* iming requirements. Output Disable. The Data Inputs/Outputs are in the high impedance state when Output Enable is

M29W004BB_STMicroelectronics.pdf

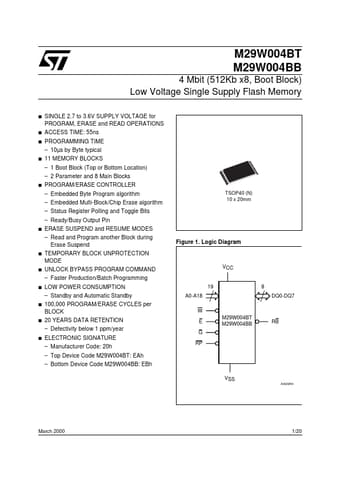

M29W004BB Datasheet Preview — Preview of M29W004BB PDF

Datasheet Details

Part number:

M29W004BB

Manufacturer:

STMicroelectronics ↗

File Size:

157.33 KB

Description:

4 mbit 512kb x8 / boot block low voltage single supply flash memory.
