M29W116BT 16 Mbit Low Voltage Single Supply Flash Memory

The M29W116B is a 16Mbit (2Mb x8) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single low voltage (2.7 to 3.6V) supply. On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM. The memory is d.

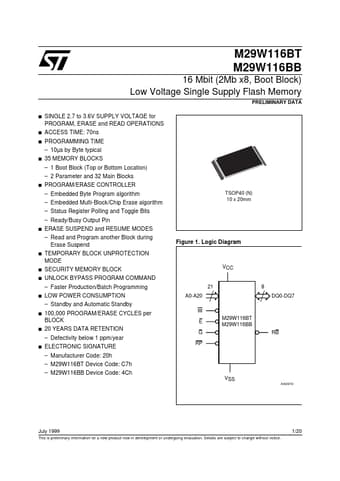

M29W116BT M29W116BB 16 Mbit (2Mb x8, Boot Block) Low Voltage Single Supply Flash Memory PRELIMINARY DATA s SINGLE 2.7 to 3.6V SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS s ACCESS TIME: 70ns s PROGRAMMING TIME 10µs by Byte typical s 35 MEMORY BLOCKS 1 Boot Block (Top or Bottom Location) 2 Parameter and 32 Main Blocks s PROGRAM/ERASE CONTROLLER Embedded Byte Program algorithm Embedded Multi-Block/Chip Erase algorithm Status Reg.
