M29W160BT 16 Mbit 2Mb x8 or 1Mb x16 / Boot Block Low Voltage Single Supply Flash Memory

The M29W160B is a 16 Mbit (2Mb x8 or 1Mb x16) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single low voltage (2.7 to 3.6V) supply. On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM. The.

M29W160BT M29W160BB 16 Mbit (2Mb x8 or 1Mb x16, Boot Block) Low Voltage Single Supply Flash Memory PRELIMINARY DATA s SINGLE 2.7 to 3.6V SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS ACCESS TIME: 70ns PROGRAMMING TIME 10µs per Byte/Word typical 35 MEMORY BLOCKS 1 Boot Block (Top or Bottom Location) 2 Parameter and 32 Main Blocks TSOP48 (N) 12 x 20mm 1 44 s s s SO44 (M) s PROGRAM/ERASE CONTROLLER Embedded Byte/Word Program algorithm .

M29W160BT Features

* TE is High and references to the Address Inputs to include this pin when BYTE is Low except when stated explicitly otherwise. Chip Enable (E). The Ch

M29W160BT Datasheet (170.65 KB)

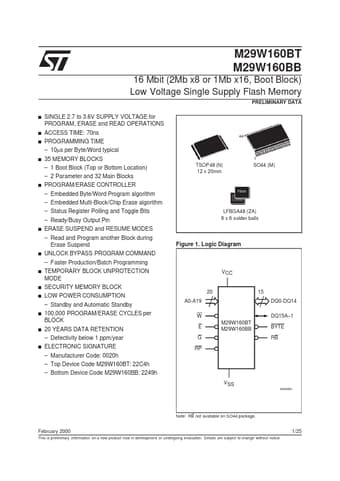

M29W160BT Datasheet Preview — Preview of M29W160BT PDF

Datasheet Details

Part number:

M29W160BT

Manufacturer:

STMicroelectronics ↗

File Size:

170.65 KB

Description:

16 mbit 2mb x8 or 1mb x16 / boot block low voltage single supply flash memory.
