M29W160ET - 16 Mbit (2Mb x8 or 1Mb x16 / Boot Block) 3V Supply Flash Memory
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
5 Figure 2.
Table 1.
Figure 3.
Figure 4.
Figure 5.
Figure 6.
Logic Diagram .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.

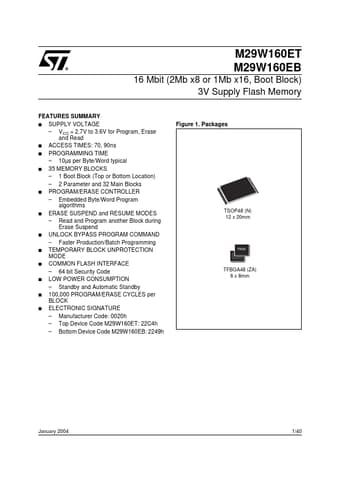

M29W160ET Features
* SUMMARY
* SUPPLY VOLTAGE
* VCC = 2.7V to 3.6V for Program, Erase and Read
* ACCESS TIMES: 70, 90ns
* PROGRAMMING TIME
* 10µs per Byte/Word typical
* 35 MEMORY BLOCKS
* 1 Boot Block (Top or Bottom Location)
* 2 Parameter and 32 Main Blocks
* PROGRAM
