M29W102BB Datasheet - ST Microelectronics

M29W102BB - 1 Mbit 64Kb x16 / Boot Block Low Voltage Single Supply Flash Memory

The M29W102B is a 1 Mbit (64Kb x16) non-volatile memory that can be read, erased and reprogrammed.

These operations can be performed using a single low voltage (2.7 to 3.6V) supply.

On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM.

The memory is

M29W102BT M29W102BB 1 Mbit (64Kb x16, Boot Block) Low Voltage Single Supply Flash Memory s SINGLE 2.7 to 3.6V SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS ACCESS TIME: 50ns PROGRAMMING TIME 10µs per Word typical 5 MEMORY BLOCKS 1 Boot Block (Top or Bottom Location) 2 Parameter and 2 Main Blocks s s s s PROGRAM/ERASE CONTROLLER Embedded Word Program algorithm Embedded Multi-Block/Chip Erase algorithm Status Register Polling

M29W102BB Features

* omatic Standby where the internal Supply Current is reduced to the Standby Supply Current, ICC2. The Data Inputs

M29W102BB_STMicroelectronics.pdf

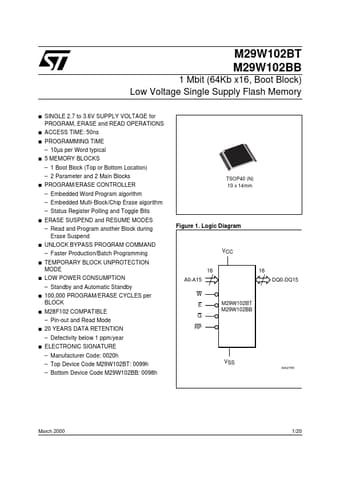

Preview of M29W102BB PDF
M29W102BB Datasheet Preview Page 2 M29W102BB Datasheet Preview Page 3

Datasheet Details

Part number:

M29W102BB

Manufacturer:

STMicroelectronics ↗

File Size:

154.14 KB

Description:

1 mbit 64kb x16 / boot block low voltage single supply flash memory.
