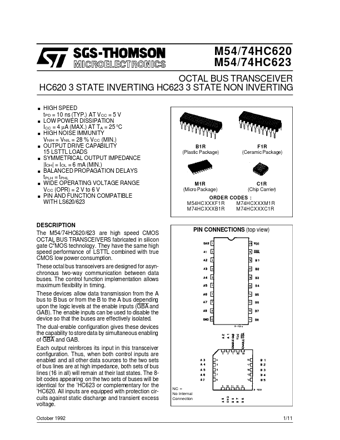

M54HC620 OCTAL BUS TRANSCEIVER

The M54/74HC620/623 are high speed CMOS OCTAL BUS TRANSCEIVERS fabricated in silicon 2 gate C MOS technology. They have the same high speed performance of LSTTL combined with true CMOS low power consumption. These octal bus transceivers are designed for asynchronous two-way communication between dat.

M54/74HC620 M54/74HC623 OCTAL BUS TRANSCEIVER HC620 3 STATE INVERTING HC623 3 STATE NON INVERTING . . . . . . . . HIGH SPEED tPD = 10 ns (TYP.) AT VCC = 5 V LOW POWER DISSIPATION ICC = 4 µA (MAX.) AT TA = 25 °C HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY 15 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE |IOH| = IOL = 6 mA (MIN.) BALANCED PROPAGATION DELAYS tPLH = tPHL WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V to 6 V PIN AND FUNCTION COMPATIBLE WITH LS620/623 B1R (Pl.
