M54HC640 OCTAL BUS TRANSCEIVER

The M54/74HC245, HC640 and HC643 utilise silicon gate C2MOS technology to achive operating speeds equivalent to LSTTL devices. Along with the low power dissipation and high noise 2 immunity of standards C MOS integrated circuit, it possesses the capability to drive 15 LSTTL loads. These IC’s are int.

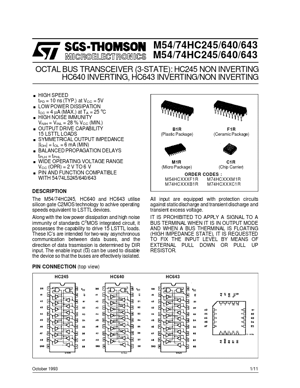

M54/74HC245/640/643 M54/74HC245/640/643 OCTAL BUS TRANSCEIVER (3-STATE): HC245 NON INVERTING HC640 INVERTING, HC643 INVERTING/NON INVERTING . . . . . . . . HIGH SPEED tPD = 10 ns (TYP.) at VCC = 5V LOW POWER DISSIPATION o ICC = 4 µA (MAX.) at TA = 25 C HIGH NOISE IMMUNITY VNIH = VINL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY 15 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE |IOH| = IOL = 6 mA (MIN) BALANCED PROPAGATION DELAYS tPLH = tPHL WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V PIN AND FU.
