M54HC08 Datasheet, Logic, STMicroelectronics

M54HC08 Features

  • Logic
  • ESCC qualified
  • 7 V Absolute maximum ratings
  • 2 V to 6 V operating voltage for CMOS M54HCxxx series
  • 4.5 V to 5.5 V operating voltage for TTL M54HCT

PDF File Details

Part number:

M54HC08

Manufacturer:

STMicroelectronics ↗

File Size:

0.97MB

Download:

📄 Datasheet

Description:

Rad-hard high speed 2v to 6v cmos logic. The M54HCxxx and M54HCTxxx series is composed of CMOS functions specifically designed to meet the radiation requirements of the aeros

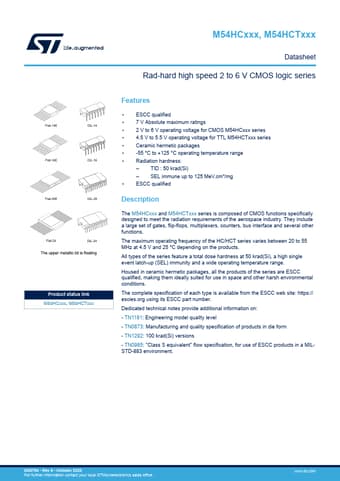

Datasheet Preview: M54HC08 📥 Download PDF (0.97MB)
