M54HC107 Datasheet - ST Microelectronics

M54HC107 DUAL J-K FLIP FLOP WITH CLEAR

The M54/74HC107 is a high speed CMOS DUAL JK FLIP FLOP fabricated in silicon gate C2MOS technology. It has the same high speed performance of LSTTL combined with true CMOS low power consumption. These flip-flop are edge sensitive to the clock input and change state on the negative going transition o.
M54HC107 M74HC107 DUAL J-K FLIP FLOP WITH CLEAR . . . . . . . . HIGH SPEED fMAX = 75 MHz (TYP.) AT VCC = 5 V LOW POWER DISSIPATION ICC = 2 µA (MAX.) AT TA = 25 °C HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE IOH = IOL = 4 mA (MIN.) BALANCED PROPAGATION DELAYS tPLH = tPHL WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V PIN AND FUNCTION COMPATIBLE WITH 54/74LS107 B1R (Plastic Package) F1R (Ceramic Package) M1R (Mic.

M54HC107_STMicroelectronics.pdf

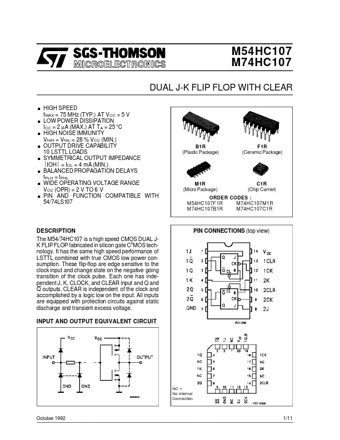

Preview of M54HC107 PDF
M54HC107 Datasheet Preview Page 2 M54HC107 Datasheet Preview Page 3

Datasheet Details

Part number:

M54HC107

Manufacturer:

STMicroelectronics ↗

File Size:

248.85 KB

Description:

Dual j-k flip flop with clear.
