M54HC123A Datasheet - ST Microelectronics

M54HC123A DUAL RETRIGGERABLE MONOSTABLE MULTIVIBRATOR

The M54/74HC123 is a high speed CMOS MONOSTABLE multivibrator fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. There are two trigger inputs, A INPUT (negative edge) and 8 INPUT (positive .
M54HC123/123A M74HC123/123A DUAL RETRIGGERABLE MONOSTABLE MULTIVIBRATOR . . . . . . . . . HIGH SPEED tPD = 25 ns (TYP) at VCC = 5V LOW POWER DISSIPATION STANDBY STATE ICC=4 µA (MAX.) AT TA=25°C ACTIVE STATE ICC = 200 µA (TYP.) AT VCC=5V HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE IOH = IOL = 4 mA (MIN.) BALANCED PROPAGATION DELAYS tPLH = tPHL WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V WIDE OUTPUT PULSE WIDTH RAN.

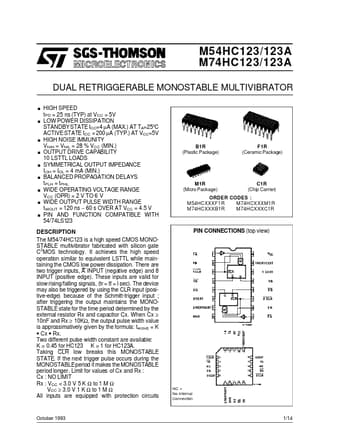

M54HC123A_STMicroelectronics.pdf

Preview of M54HC123A PDF
M54HC123A Datasheet Preview Page 2 M54HC123A Datasheet Preview Page 3

Datasheet Details

Part number:

M54HC123A

Manufacturer:

STMicroelectronics ↗

File Size:

291.68 KB

Description:

Dual retriggerable monostable multivibrator.
