M54HC126 Datasheet - ST Microelectronics

M54HC126 QUAD BUS BUFFERS

The M54/74HC125/126 are high speed CMOS QUAD BUS BUFFER (3-STATE) FABRICATED IN SILICON GATE C2MOS technology. They have the same high speed performance of LSTTL combined with true CMOS low power consumption. These devices require the same 3-STATE control input G to be taken high to make the output .
M54/74HC125 M54/74HC126 QUAD BUS BUFFERS (3-STATE) . . . . . . . . HIGH SPEED tPD = 8 ns (TYP.) AT VCC = 5 V LOW POWER DISSIPATION ICC = 4 µA (MAX.) AT 25 °C OUTPUT DRIVE CAPABILITY 15 LSTTL LOADS BALANCED PROPAGATION DELAYS tPLH = tPHL SYMMETRICAL OUTPUT IMPEDANCE IOL = IOH = 6 mA (MIN.) HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V PIN AND FUNCTION COMPATIBLE WITH 54/74LS125/126 B1R (Plastic Package) F1R (Ceramic Package) M1R (Micr.

M54HC126_STMicroelectronics.pdf

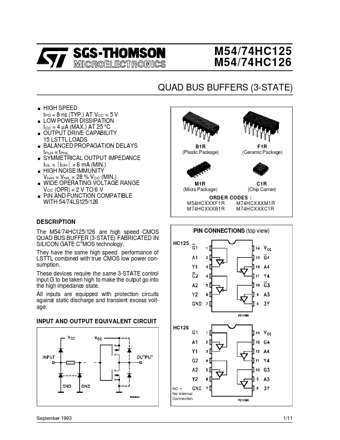

Preview of M54HC126 PDF
M54HC126 Datasheet Preview Page 2 M54HC126 Datasheet Preview Page 3

Datasheet Details

Part number:

M54HC126

Manufacturer:

STMicroelectronics ↗

File Size:

256.25 KB

Description:

Quad bus buffers.
