M54HC670

4 WORD x 4 BIT REGISTER FILE

M54HC670 General Description

The M54/74HC670 is a high speed CMOS 4 WORD X 4 BIT REGISTER FILE (3-STATE) fabricated in silicon gate C2MOS technology. It has the same high speed performance of LSTTL combined with true CMOS low power consumption. The M54HC/74HC670 is a 4 x 4 Register File organized as four words by four bits. Sep.

M54HC670 Datasheet (264.83 KB)

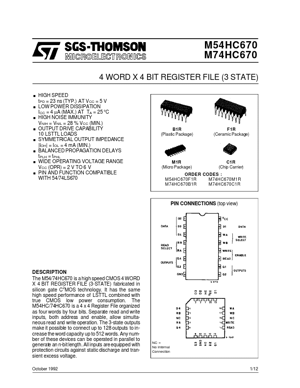

Preview of M54HC670 PDF

Datasheet Details

Part number:

M54HC670

Manufacturer:

STMicroelectronics ↗

File Size:

264.83 KB

Description:

4 word x 4 bit register file.
M54HC670 M74HC670 4 WORD X 4 BIT REGISTER FILE (3 STATE) . . . . . . . . HIGH SPEED tPD = 23 ns (TYP.) AT VCC = 5 V LOW POWER DISSIPATION ICC = 4 µA.
