M54HC7240

OCTAL BUS BUFFER WITH 3 STATE OUTPUTS HC7240: INVERTED - HC7241/7244 NON INVERTED

ST Microelectronics

M54HC7240 General Description

The M54/74HC7240, HC7241 and HC7244 are high speed CMOS OCTAL BUS BUFFERs fabricated in silicon gate C2MOS technology. They have the same high speed performance of LSTTL combined with true CMOS low power consumption. The designer has a choise of select combination of inverting and non-inverting outp.

M54HC7240 Datasheet (270.98 KB)

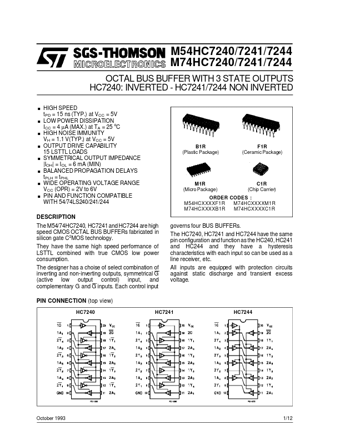

M54HC7240 Datasheet Preview — Preview of M54HC7240 PDF

Datasheet Details

Part number:

M54HC7240

Manufacturer:

STMicroelectronics ↗

File Size:

270.98 KB

Description:

Octal bus buffer with 3 state outputs hc7240: inverted - hc7241/7244 non inverted.
M54HC7240/7241/7244 M74HC7240/7241/7244 OCTAL BUS BUFFER WITH 3 STATE OUTPUTS HC7240: INVERTED - HC7241/7244 NON INVERTED . . . . . . . . HIGH SPEED.
