M54HC7244, M54 Datasheet - ST Microelectronics

M54HC7244 OCTAL BUS BUFFER WITH 3 STATE OUTPUTS HC7240: INVERTED - HC7241/7244 NON INVERTED

The M54/74HC7240, HC7241 and HC7244 are high speed CMOS OCTAL BUS BUFFERs fabricated in silicon gate C2MOS technology. They have the same high speed performance of LSTTL combined with true CMOS low power consumption. The designer has a choise of select combination of inverting and non-inverting outp.

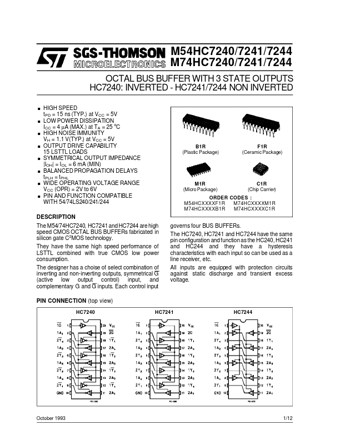

M54HC7240/7241/7244 M74HC7240/7241/7244 OCTAL BUS BUFFER WITH 3 STATE OUTPUTS HC7240: INVERTED - HC7241/7244 NON INVERTED . . . . . . . . HIGH SPEED tPD = 15 ns (TYP.) at VCC = 5V LOW POWER DISSIPATION o ICC = 4 µA (MAX.) at TA = 25 C HIGH NOISE IMMUNITY VH = 1.1 V(TYP.) at VCC = 5V OUTPUT DRIVE CAPABILITY 15 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE |IOH| = IOL = 6 mA (MIN) BALANCED PROPAGATION DELAYS tPLH = tPHL WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2V to 6V PIN AND FUNCTION COMPATIBLE WIT.

M54-HC7240.pdf

M54HC7244 Datasheet Preview — This datasheet PDF includes multiple part numbers: M54HC7244, M54. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M54HC7244, M54

Manufacturer:

STMicroelectronics ↗

File Size:

270.98 KB

Description:

Octal bus buffer with 3 state outputs hc7240: inverted - hc7241/7244 non inverted.

Note:

This datasheet PDF includes multiple part numbers: M54HC7244, M54.
Please refer to the document for exact specifications by model.
