M54HC7294 PROGRAMMABLE DIVIDER/TIMER

The 54/74HC292/7292 and HC294/7294 are high speed CMOS PROGRAMMABLE DIVIDER/TIMER fabricated with silicon C2MOS technology. They achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. These devices are programmable frequency dividers. The types.

M54/74HC292/7292 M54/74HC294/7294 PROGRAMMABLE DIVIDER/TIMER . . . . . . . . HIGH SPEED fMAX = 70 MHz (TYP.) at VCC = 5 V LOW POWER DISSIPATION o ICC = 4 mA (MAX.) at TA = 25 C HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE | IOH|= IOL = 4 mA (MIN.) BALANCED PROPAGATION DELAYS tPLH = tPHL WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V PIN AND FUNCTION COMPATIBLE WITH 54/74LS292/294 B1R (Plastic Package) F1R (Ceramic .

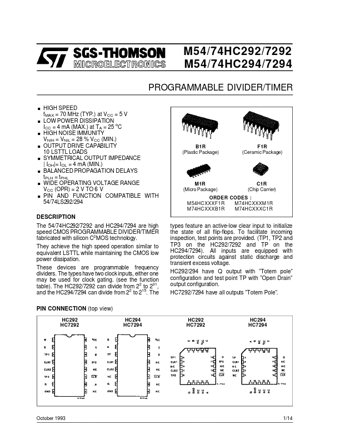

M54-HC7292.pdf

M54HC7294 Datasheet Preview — This datasheet PDF includes multiple part numbers: M54HC7294, M54. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M54HC7294, M54

Manufacturer:

STMicroelectronics ↗

File Size:

299.85 KB

Description:

Programmable divider/timer.

Note:

This datasheet PDF includes multiple part numbers: M54HC7294, M54.
Please refer to the document for exact specifications by model.
